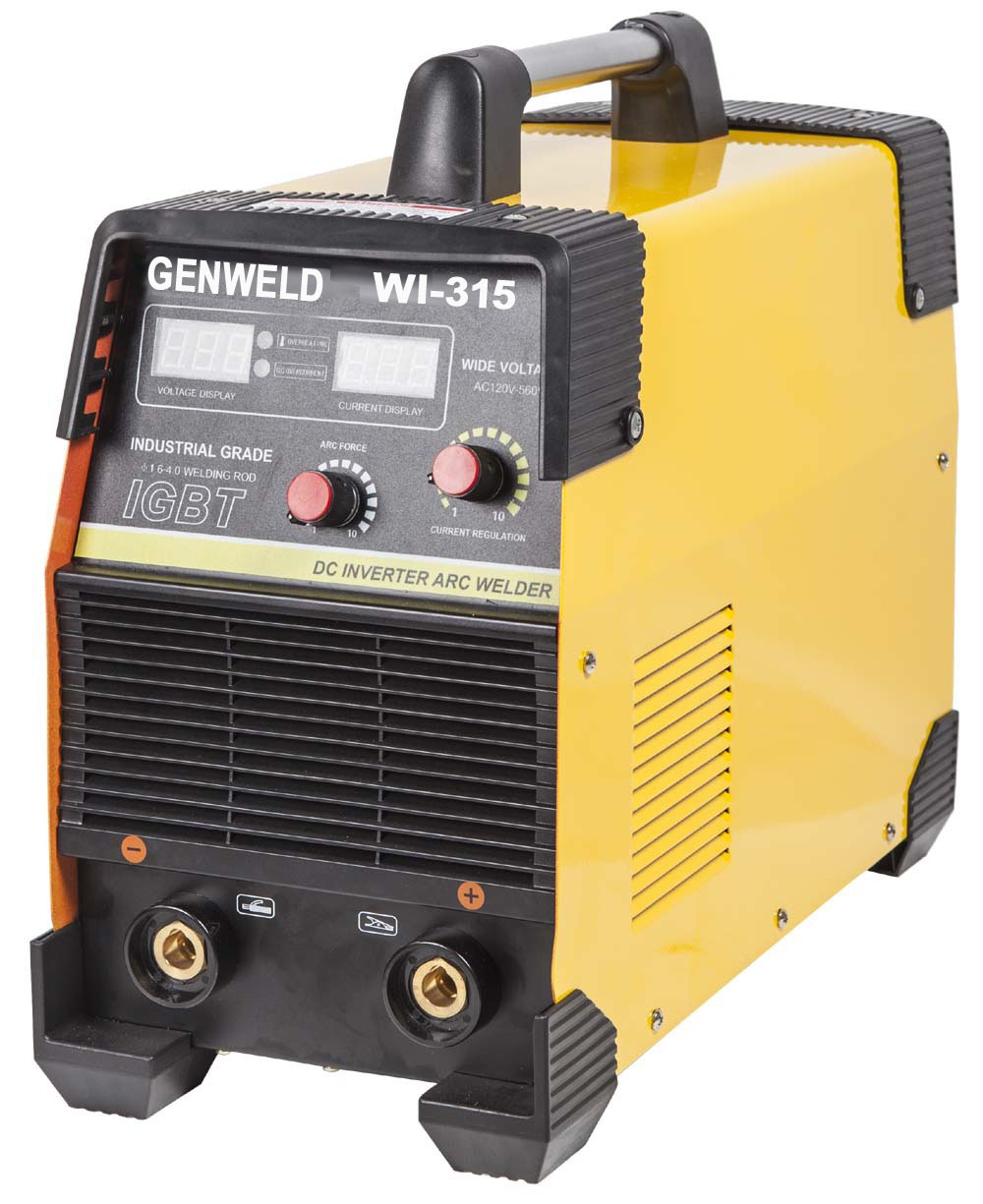

GENWELD WI-315 230A Portable Civil-purpose MMA Inverter Welder

Product Categories

Chongqing Lianwai Technology Co., Ltd.

Contact Now

Name: GENWELD WI315 230A Portable Civilpurpose MMA Inverter Welder
Brand: GENWELD
Price: 93 USD

Brand Name : GENWELD

Model Number : WI-315

Certification : CE

Place of Origin : CHONGQING

MOQ : 10 sets

Price : USD93-100/Set

Payment Terms : T/T, L/C

Supply Ability : 10000 sets per month

Delivery Time : 20 work days

Packaging Details : Seaworthy carton 445*205*360mm

Another name : Arc welding inverter

Application : Civil maintenance

Welding process : MMA

Contact Now

Model		WI-315
Brand		GENWELD
Power source	Phase	Single/Tri-phase
	Frequence	50Hz / 60Hz
	Rated voltage	Single AC220V/380V ±5%
	Rated voltage	Tri-phase AC380V ±5%
	Matching generator	Yes
Welder	Open circuit voltage	DC65-75V ±5%
	Current range	DC 25-235A ±5%
	Loaded voltage	DC 21-29.4V tolerance range:+10%/-2%
	External characteristic curve	Drop characteristic
	Duty cycle	100%
	Applied Electrode	1.6-4.0mm / 4.0mm
	Rectifier	IGBT
Whole set	Material	Ordinary brown carton
	Packing size	445205360 mm
	Pallet size
	Unit weight	10.8kg

GENWELD WI-315 230A Portable Civil-purpose MMA Inverter Welder
